Home > Products > Powered By FAW > Gensets Price Factory 120kw 150kVA Xichai Fawde Diesel Engine Generator with Ce, ISO

Gensets Price Factory 120kw 150kVA Xichai Fawde Diesel Engine Generator with Ce, ISO

Product Description

Gensets price factory 120kw 150kva xichai fawde diesel engine generator with CE,ISO

                               WE ARE FACTORY!
Products Features:
1.We cooperate with famous diesel Engine -Powered by Cummins, Perkins  Deutz , LovoL , Lister Petter, Doosan, Shangchai, Yarman, Foton-Isuzu, FAW, SDEC, Weichai, MTU, Ricardo, Jichai,ETC
2. Equipped with famous Brushless Alternator - Optional Stamford, Leroy Somer, Marathon, BOBIG, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
5. Generator set use High-quality steel are thickness canopy -- 2MM to 6MM
6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing
7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.
8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.
9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker
10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.
11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance
12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.
13. All new design for Diesel Generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.
14. Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Safety - Stability - Economy -  Reliability Power
Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Controller System
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25

Manufacturing Standard
GB/T2820, ISO,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34.

Product Warranty policy
BOBIG products has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, we will provide the free easy-damageable spare parts, caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance.

Genset Range:
We can produce diesel generator from 5KW-2000KW for you.
We cooperate with famous diesel engine -Powered by Cummins,Yuchai,Yangdong,Weichai, Deutz,Weifang,LovoL, DOOSAN, Shangchai, Yarman,FAW,Ricardo etc.
Voltage,frequency,tank capacity,phase(1phase or 3phase) and color can be made accord with your need,about more details information,more models and new price list,please contact us.


BOBIG POWER FAW DIESEL GENERATOR
MODELBFA165silent typeOpen type +ATS
Prime power (KW/KVA)120KW/150KVA$$$
Standby power (KW/KVA)132KW/165KVAFreight:$
The order is bigger,the price is lower
General description
1. Engine: CA6DF2-19D FAW
2. Alternator:BW-274F   STAMFORD TYPE
3. Controller: DEEPSEA/Smartgen
4. Electronic speed control
5.:Frequency: 50/60HZ
6. Rated speed: 1500rpm/1800rpm
7. 2*12V batteries, maintennance free type.
8. 24V charge dynamo.
9. Equipped with 10-12hours operation base tank
10. DIM: silent:3200*1040*1480mm ,open: 2500*800*1580mm
11. Nobise level: 69-72DB@7M ,if need lower noise level,please contact us.
12. Package:Plywood case
13. Radiator 50ºC max, fans are driven by belt with safety guard
14. Delivery time:10~15 working days after receiving customers' deposit

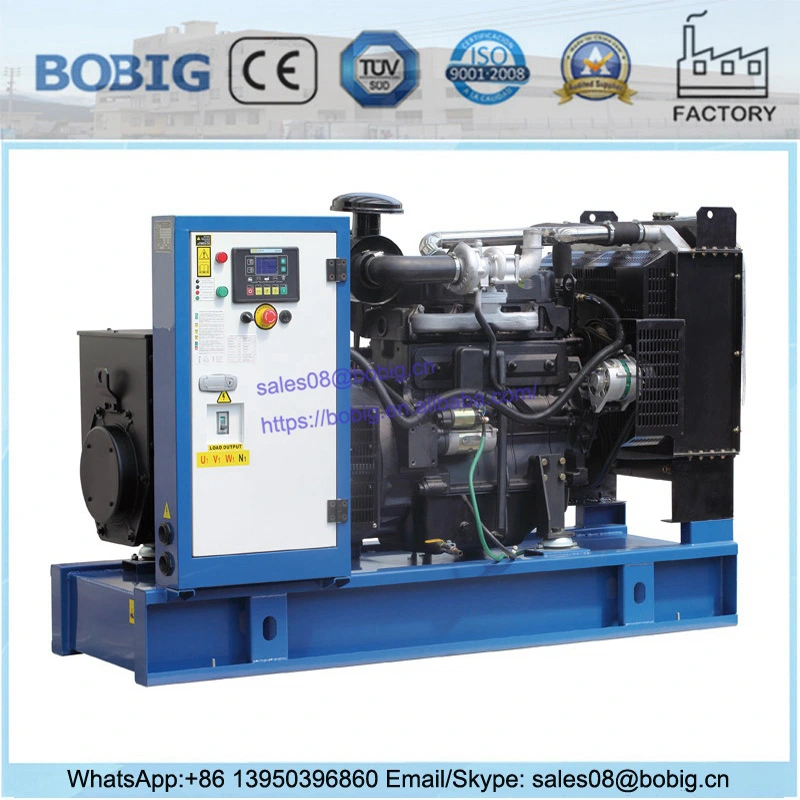

PHOTO FOR REFERNCE ONLY
Engine specifications:
Engine modelCA6DF2-19D
Number of cylinders6
Cylinder arrangementVertical in line
Cycle 4
AspirationTurbo Intercooler
Bore×Stroke(mm×mm)114×135
Displacement (Liter)8.3
Compression Ratio16.5:1
Prime power/speed (kW/RPM)140/1500RPM
Standby power/speed (kW/RPM)154/1500RPM
Speed governormechanical
Cooling systemIntercooler
Coolant capacity (engine only) (L)12.3
Steady speed droop (%)1%
Total lubrication system capacity (L)24
Oil consumption (g/kw.h)0.15% of fuel consumption
 Fuel consumption at 100% load (g/kw.h)230
Fuel consumption at 75% load (g/kw.h)
Fuel consumption at 50% load (g/kw.h)
Starter motor24V
Dyanmo24V
ALTERNATOR SPECIFICATION:
Compliance with GB755,BS5000,VDE0530,NEMAMG1-22,IED34-1,CSA22.2 and AS1359
Alternator modelBW-274F
Exciter typeSingle bearing, Brushless, Self-excited
Rated output prime power(KVA/KW)128kW
Rated speed1500 RPM
Rated frequency50 Hz
Phase3
Rated voltage220,230,240,380,400,415v
Current(A)182
Power factor0.8
Voltage adjust range≥5%
Voltage regulation NL-FL≤±1%
Insulation gradeH
Protection gradeIP23
Control system
Standard AMF control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020, AMF20, AMF25
ProtectionParameterPHOTO
Low oil pressureVoltoil pressure
High water tempcurrentoil temp
Over speedpowerpower factor
Over crankspeed running time
Over loadfrequencywater temp
Over/low volt battery voltage
Over/low  frequency
battery charge failure
