550KW diesel generator sets powered by Shangchai engine Diesel Genset
Basic Info
Model No.: HF-550S
Product Description

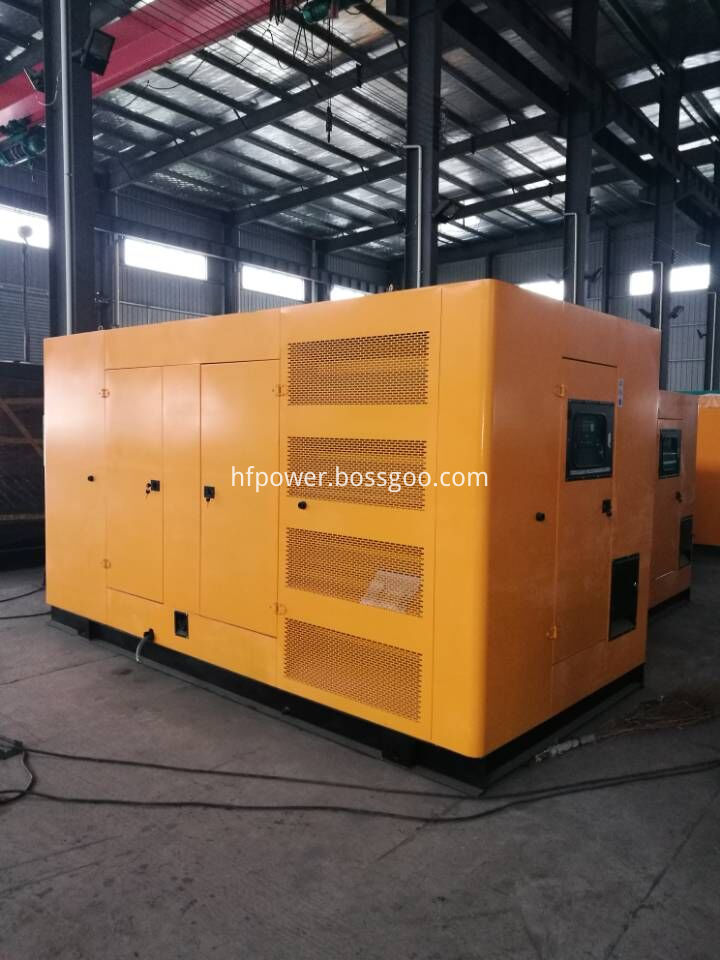

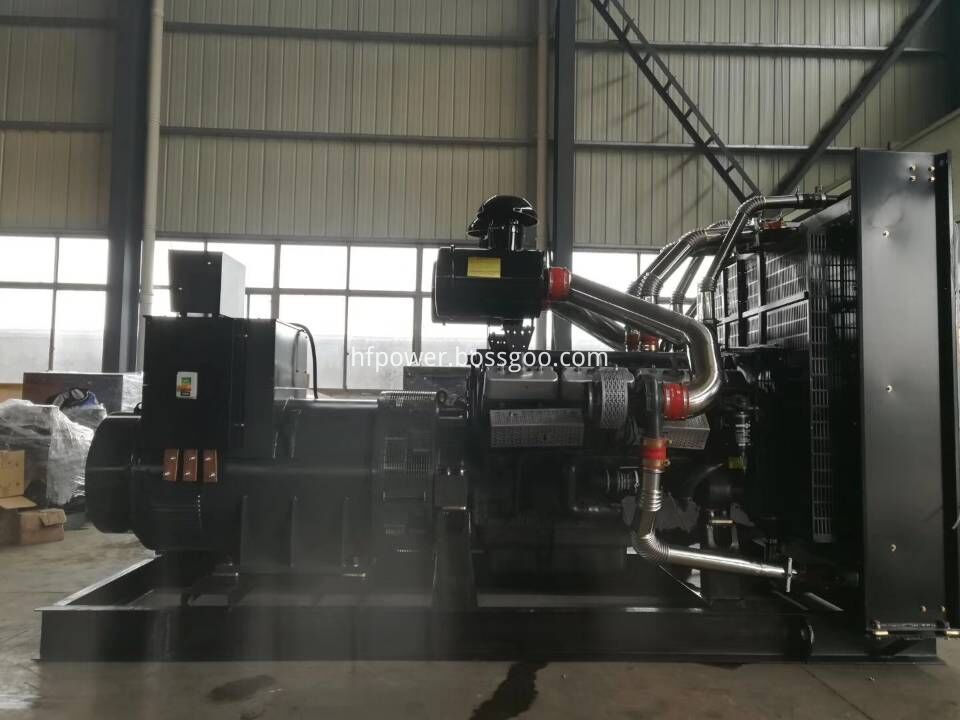

Shangchai 550KW Diesel Generator set
Unit operating environment conditions Unit technical indicators
Operating conditions: Outdoor Startup time 10S-30S
Maximum temperature +50°C Voltage fluctuation rate: ±0.5%
Maximum daily average temperature +40°C Frequency fluctuation rate:≤±0. 5%
The highest annual average temperature +30°C Voltage stabilization time:≤1S
Minimum annual average temperature -5°C Frequency stabilization time:≤1second
Relative humidity ≤95% at +25°C Waveform distortion factor: ≤5S
Altitude: ≤1000 meters
Output power(KW) 550/610 Output capacity (KVA) 687.5 Power factor 0.8 Frequency(HZ) 50 Maximum electric output(A) 990 Dimension(mm) 3900*1500*1950 Net Weight(kgs) 4500 Model SDV610 Rated speed(RPM) 1500 Cylinder No. 12 Fuel grade China 0#(light diesel) Cylinder type V type Fuel consumption rate (g/kw.h) 229 BorexStroke(mm) 135/155 Lubricating oil specifications and grades Above API-CD Displacement(L) 26 Total lubricating oil capacity (L) 57 Compression 17:1 Max lubricating oil temperature (°C) 121 Thermostat temperature range(℃) 82-93 Max oil consumption (L) 57.4 Allow maximum back pressure (KPa) 6 Max temperature of smoke exhaust (°C) 650 Cooling method Closed cycle water cooling Min intake resistance (M3/min) 24.76 Total cooling water capacity (L) 76 Full load fuel consumption (g/kw.H) 229 Oil lubrication Rotary oil Dry air filter Maximum coolant temperature (°C) 100/104 Gov Electric Voltage adjustment range ≥±5% Steady voltage regulation ≤±1.0% Temperature rise H Voltage control method AVR(SMAVC6307) Insulation class H Overload capability 1.5 times 2 mins Protection level IP22 Short circuit capability 3 times 2 sec effectiveness 93.60% Cooling method Self-cooling Electromagnetic interference coefficient THF<2%,TIF<50 Rotor type Salient pole
